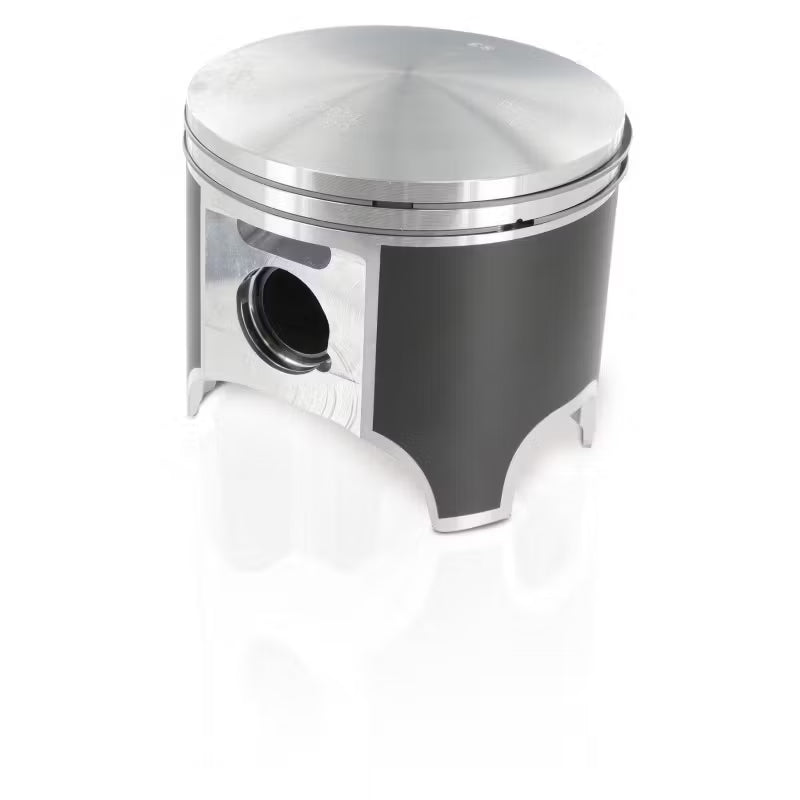

S3 S3 250cc Piston Kit - GasGas, Vertigo, TRS, Beta

About this S3 S3 250cc Piston Kit - GasGas, Vertigo, TRS, Beta

Superb quality longlife S3 Racing piston kit for the following bikes:
GasGas Pro 250 - 2002 onwards
TRS One / RR / Gold 250 - 2016 onwards
Vertigo 250 - 2017 onwards

Kit includes piston, rings, gudgeon pin and clips.

Also listed as suitable replacement piston for the following bikes.
Jotagas 250
But please check very carefully as the distance from the centre of the gudgeon pin to the edge of the piston may be slightly different so the squish clearance must be checked and the base gasket thickness adjusted to suit.
Beta Techno 250
Beta Rev 3 250
Beta Evo 250 2011 to 2022

On the Beta Techno, Rev 3 and Evo 250 using this S3 piston will very slightly lower the compression, this can easily be compensated for with the base gasket thickness.

Nominal Size 72.50mm
Size A 72.46mm
Size B 72.47mm
Size C 72.48mm

18mm Gudgeon Pin by 56mm long

Centre of the gudgeon pin to the top edge of the piston 28.9mm

Overall height 66mm

Weight including rings, gudgeon pin and C-clips 270 grams
